Actual product referenceChain Link Fence Fabric
Woven diamond-mesh rolls in galvanized or PVC-coated finish

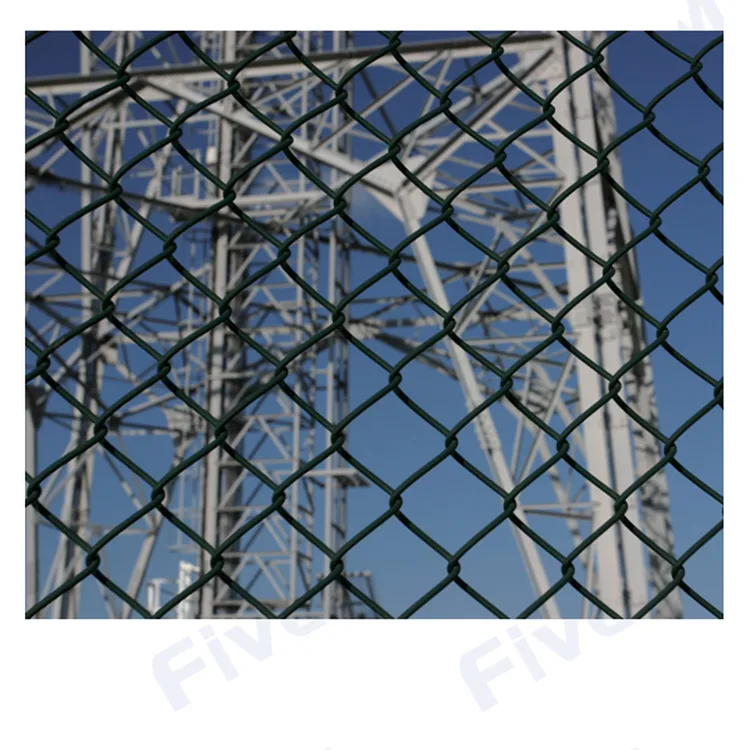

Chain link fence fabric is woven diamond mesh supplied in rolls for permanent perimeter fencing. Leeter manufactures chain link in 3/4" to 4" mesh with 18–8 BWG wire, electro-galvanized, hot-dip galvanized or PVC-coated, with twisted or knuckled selvage to order.
Specification locked
Process controlled
Dimension verified
Packing documented
Technical specifications
Final values confirmed on approved order| Specification item | Available range | Order control |
|---|---|---|
| Mesh opening | 3/4"–4" (20×20 – 100×100mm) | Confirmed on sample, drawing or order sheet |
| Wire diameter | 18–8 BWG (1.2–4.0mm) | Confirmed on sample, drawing or order sheet |
| Height | 0.5–4.0m (4 ft / 5 ft / 6 ft standard) | Confirmed on sample, drawing or order sheet |
| Roll length | 10 / 15 / 20 / 25m (50 ft standard US roll) | Confirmed on sample, drawing or order sheet |
| Selvage | Twisted (barbed) or knuckled ends | Confirmed on sample, drawing or order sheet |
| Finish | Electro-galvanized, hot-dip galvanized, PVC-coated (green/black) | Confirmed on sample, drawing or order sheet |
| Popular sizes | 50×50mm × 1.8mm and 60×60mm × 2.0mm, 25m rolls | Confirmed on sample, drawing or order sheet |
Get pricing, packing and lead time.
Trial orders welcome
15–35 days from PO
FOB and CIF planning
Packing built around handling
Packing reference

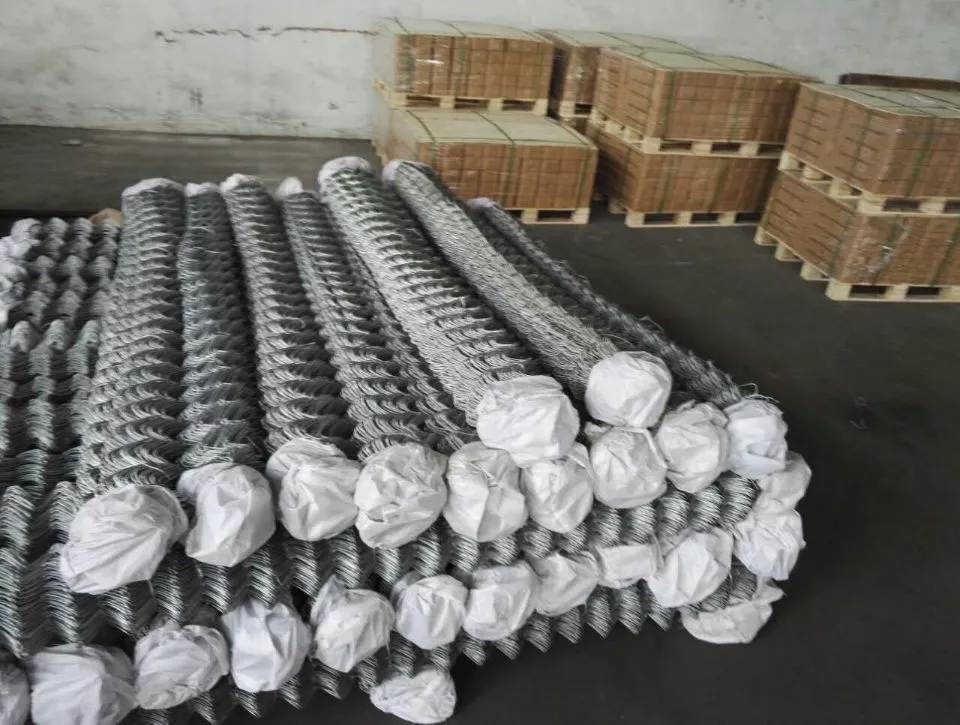

Rolls compacted, wrapped at both ends and strapped; palletized or floor-loaded to container. Loading plan on request.
- ✓ Unit and outer pack confirmed
- ✓ Shipping marks checked
- ✓ Loading plan and photos available
Quality documents
Applications
- →Commercial and residential perimeter fencing
- →Sports fields, playgrounds and highway or railway lines
- →Airports, ports and utility enclosures
Explore applications →Related buyer guides
Why Chain Link Fence Sags — and How to Tighten It
Sag comes from four places: fabric tension, terminal bracing, the top edge, or the gate. Each has a specific fix — here they are in order.
6 min read →Form Stakes & FencingHow Much Chain Link Fence Do You Need? Materials and Post Spacing
Fabric rolls, 10 ft post spacing, 21 ft top rail and the per-terminal hardware counts, with a worked 100 ft bill of materials.
8 min read →Form Stakes & FencingChain Link Fence Fabric: Mesh Size, Gauge and Selvage Explained
How to specify chain link fabric: mesh size, BWG wire gauge, knuckled vs twisted selvage, heights and roll lengths.
7 min read →Form Stakes & FencingPVC-Coated vs Galvanized Chain Link: Which to Import
A manufacturer's comparison of PVC-coated and galvanized chain link: specs, core vs overall diameter, and market fit.
7 min read →Buyer FAQ
What is the difference between twisted and knuckled chain link?
Knuckled selvage folds the wire ends back into a smooth loop — the safe choice for schools, playgrounds and residential fencing. Twisted (barbed) selvage leaves sharp twisted ends at the top for added security on commercial and industrial perimeters. We supply either, or knuckled bottom with twisted top.
Which chain link mesh size and gauge should I order?
The workhorse combinations are 50×50mm (2") mesh with 1.8–3.0mm wire and 60×60mm with 2.0mm wire. Smaller 20–40mm mesh suits security and animal control; heavier 8–10 BWG wire suits high-abuse commercial runs. Tell us the fence height and use and we will match mesh and gauge.
Do you supply PVC-coated chain link?
Yes — PVC-coated chain link over a galvanized core, typically 50×50 or 60×60mm mesh with 1.8/2.8mm to 2.0/3.0mm core/overall diameters, in green, black or custom colors, 0.5–3m widths and 10–25m rolls.
Need a matched answer?
Send the drawing, destination and expected quantity to the same team that prepares your quotation.
Talk to our buyer desk
Ready to source Chain Link Fence Fabric?
Turn your requirement into a quote.
Pricing, packing and lead time tied to the confirmed specification.
