Product system · 9 configurations

Wire Mesh & Wall Accessories

Welded and concrete reinforcing mesh plus masonry and formwork accessories — brick wall ties, plywood clips and related site components engineered for consistent spacing and fast installation.

Request a matched quote →See the range

Drawing matchedPacking plannedQC documented

01Specify

02Verify

03Repeat

Choose by specification

Available product range

Click any item for detailed specifications

Welded Wire Mesh

Panels and rolls with uniform resistance-welded joints

Wire diameter0.5–6.0mm

Aperture1/2" to 6" (12.7–150mm), custom

FinishGalvanized-before/after weld, PVC-coated, plain

↗02

Concrete Reinforcing Mesh

Structural mesh sheets for slabs and pavements

Wire diameter4–12mm ribbed or plain

Mesh spacing100 × 100mm, 150 × 150mm, 200 × 200mm; 6" × 6" (US)

Sheet size2m × 3m, 2.4m × 6m; 5×10 ft, 8×15 ft, 8×20 ft (US)

↗03

Brick Wall Ties

Masonry ties and ladder/truss mesh for cavity walls

TypesCorrugated veneer tie, ladder mesh, truss mesh, Z-tie

MaterialGalvanized steel or stainless 304

Wire diameter1.2–4.8mm depending on type

↗04

Plywood Clips (H-Clips)

Panel edge clips for roof and wall sheathing

TypeH-clip / plywood edge clip

Panel thickness3/8", 7/16", 1/2", 5/8", 3/4"

MaterialGalvanized spring steel

↗05

Hexagonal Wire Netting (Chicken Wire)

Twisted hex mesh in galvanized or PVC-coated finish

Twist typeNormal twist or reverse twist

Mesh opening1/2" (13), 5/8" (16), 3/4" (19), 1" (25), 1-1/4" (30), 1-1/2" (40), 2" (50mm)

Wire diameter0.4–1.2/1.6mm by opening

↗06

Square Woven Wire Mesh

Screening mesh from 2 to 60 mesh, five finish options

Mesh count2×2 to 60×60 mesh (per inch)

Wire diameter0.16–1.65mm by mesh count

Roll width0.3–1.5m (12–60")

↗07

Metal Lath & Accessories

Diamond-mesh lath, corner bead and brick mesh for plaster

Lath weights1.75 / 2.5 / 3.4 lbs/yd² (2.0 available)

Sheet size27" × 96" / 27" × 97"

StylesFlat, dimpled (self-furring), grooved, paper-backed

↗08

Gabion Box & Mattress

Double-twist hexagonal baskets for retaining and erosion works

TypeGabion box / reno mattress, double-twist hexagonal

Box mesh / wire80×100mm mesh, 2.7mm wire

Box sizes1.5 / 2 / 2.5 / 3 / 4m long × 1m wide × 0.5 / 1m high

↗09

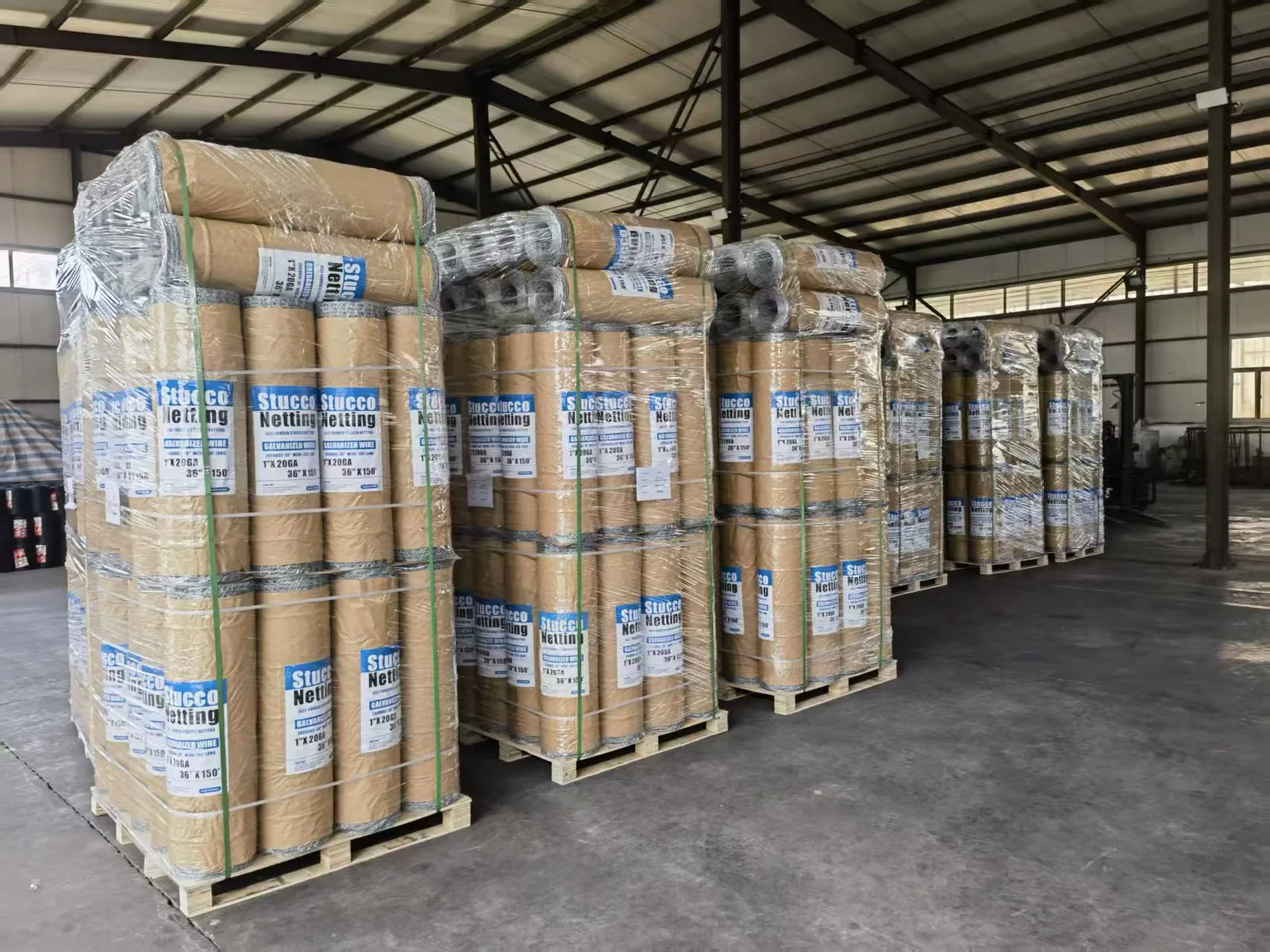

Stucco Netting (Hex Netting)

Galvanized hex netting for plaster & stucco reinforcement

TypePlain hex netting, self-furring stucco netting

Mesh1", 1-1/2" hexagonal openings

Wire gauge17GA (1-1/2" mesh) / 18GA (1" mesh) per C1032; 19–20GA hex netting available

↗

Real product & production

From our factory floor

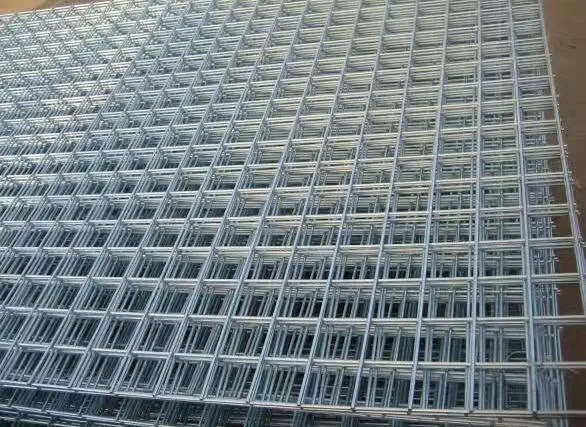

Wire Mesh & Wall Accessories — Welded wire mesh — Welded wire mesh

Wire Mesh & Wall Accessories — Hexagonal netting — Hexagonal netting

Wire Mesh & Wall Accessories — Square woven mesh — Square woven mesh

Wire Mesh & Wall Accessories — Mesh welding machine — Mesh welding machine

Before we quote

Five details remove purchasing risk

Application

Dimensions

Finish

Quantity

Destination

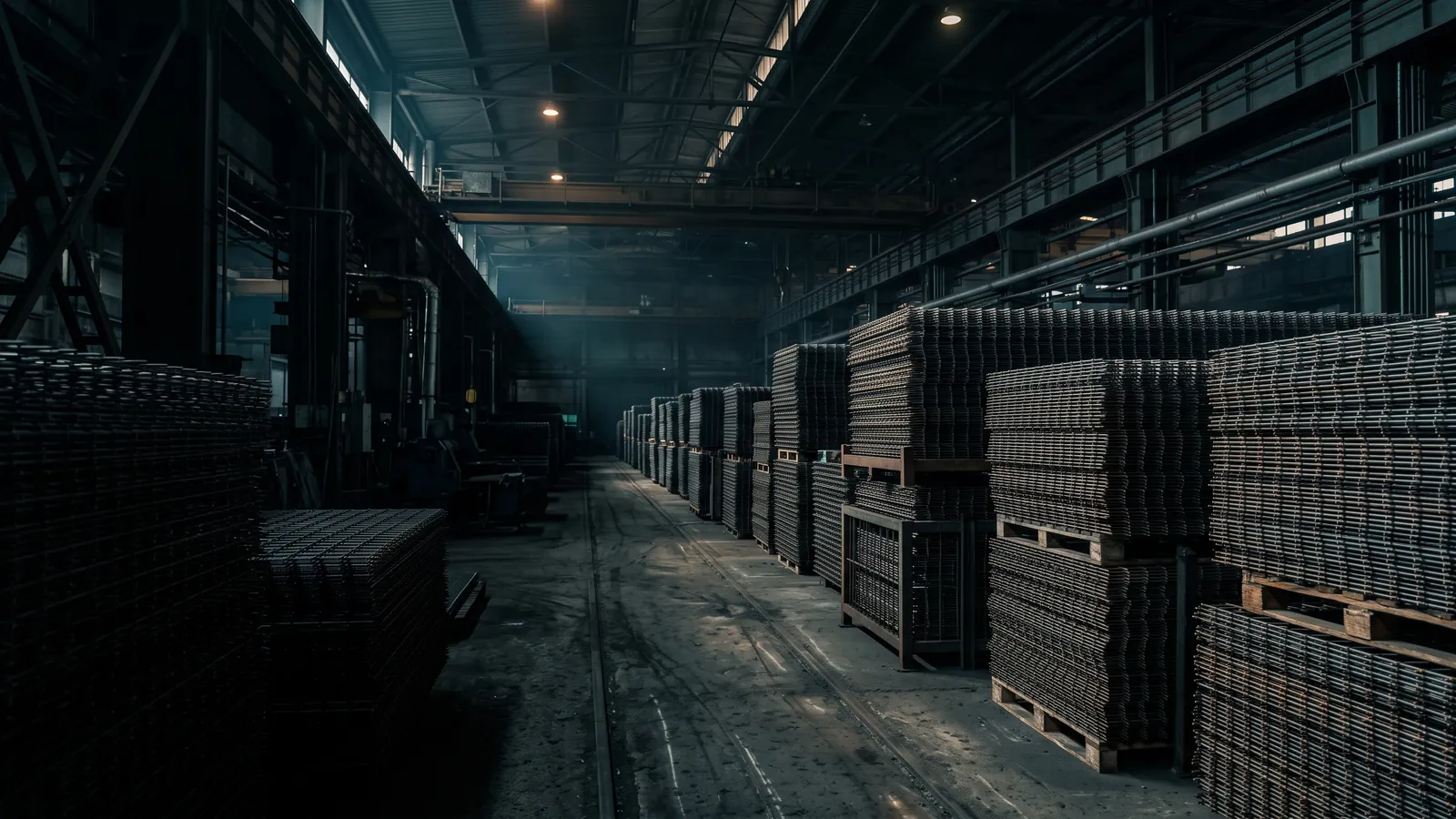

Wire Mesh & Wall Accessories production at the Leeter factory

Have a specification ready?

Get pricing, packing and lead time.

Accurate pricingfor your specification

Export-ready packingfor distribution

Reliable lead timefrom confirmed PO

Send your RFQ → Need help specifying?
