Actual product referenceSquare Woven Wire Mesh
Screening mesh from 2 to 60 mesh, five finish options
Square woven wire mesh is plain-woven screening cloth counted in mesh per inch. Leeter weaves 2×2 through 60×60 mesh in wire from 0.16 to 1.65mm, in galvanized (before/after weaving), enamelled, PVC-coated and stainless finishes — rolls 0.3–1.5m wide by 25m or 30m.
Specification locked
Process controlled
Dimension verified
Packing documented
Technical specifications
Final values confirmed on approved order| Specification item | Available range | Order control |
|---|---|---|
| Mesh count | 2×2 to 60×60 mesh (per inch) | Confirmed on sample, drawing or order sheet |
| Wire diameter | 0.16–1.65mm by mesh count | Confirmed on sample, drawing or order sheet |
| Roll width | 0.3–1.5m (12–60") | Confirmed on sample, drawing or order sheet |
| Roll length | 25m / 30m | Confirmed on sample, drawing or order sheet |
| Finish | Hot-dip/electro galvanized before or after weaving, enamelled, PVC-coated, stainless steel | Confirmed on sample, drawing or order sheet |
| Popular counts | 4×4 and 8×8 window/screen duty; 2×2 sifting duty | Confirmed on sample, drawing or order sheet |
Get pricing, packing and lead time.
Trial orders welcome
15–35 days from PO
FOB and CIF planning
Packing built around handling
Packing reference

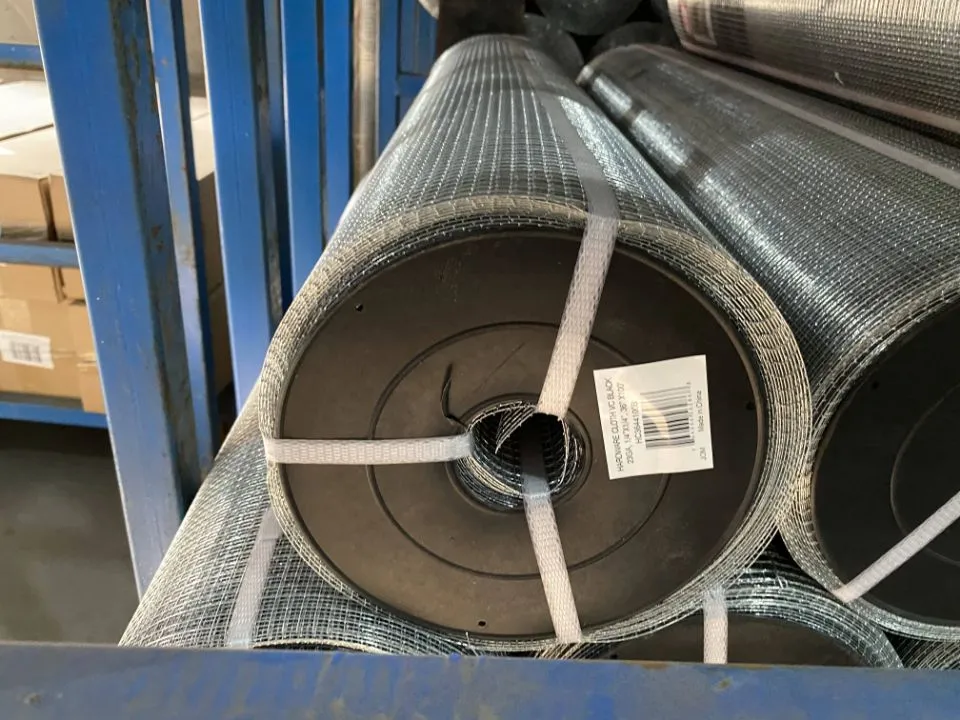

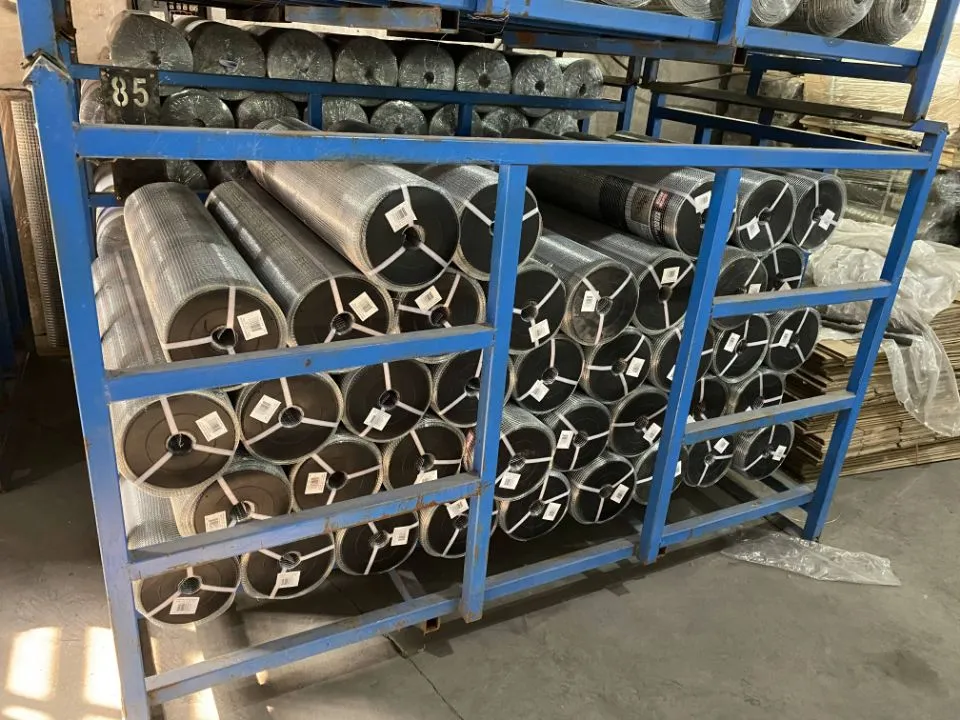

Rolls wrapped in waterproof paper then plastic film, labeled by mesh/wire/size; cartoned or palletized.
- ✓ Unit and outer pack confirmed
- ✓ Shipping marks checked
- ✓ Loading plan and photos available
Quality documents
Applications
- →Sand, loam and aggregate screening
- →Window, skylight and vent protection screens
- →Bird feeders, cages and general fabrication
Explore applications →Related buyer guides
Buyer FAQ
How is square wire mesh specified?
By mesh count (openings per inch), wire diameter and roll size — e.g. 8×8 mesh × 0.55mm × 0.9m × 30m. Higher counts give finer openings; heavier wire in the same count gives a stronger cloth with a smaller clear opening.
Square woven mesh or welded mesh — which do I need?
Woven square mesh covers fine counts (2–60 per inch) for screening and sieving that welding cannot reach. Welded mesh starts around 1/4" openings and gives a stiffer panel for cages and reinforcement — see our welded wire mesh range.
Need a matched answer?
Send the drawing, destination and expected quantity to the same team that prepares your quotation.
Talk to our buyer desk
