Actual product referenceHigh Carbon Steel Wire
Galvanized spring-grade wire, 1300–2200 MPa tensile
High carbon galvanized steel wire is drawn from 45#–82B grades for applications where strength matters: baling, tension fence lines, vineyard and greenhouse wire, and spring stock. Leeter supplies 1.25–5.50mm (18–5 BWG) with zinc coatings from 40 to 300 g/m² and tensile strength from 1300 to 2200 MPa.
Specification locked
Process controlled
Dimension verified
Packing documented
Technical specifications
Final values confirmed on approved order| Specification item | Available range | Order control |
|---|---|---|
| Material | 45#, 55#, 65#, 70#, 77B, 82B | Confirmed on sample, drawing or order sheet |
| Wire diameter | 1.25–5.50mm (18–5 BWG) | Confirmed on sample, drawing or order sheet |
| Zinc coating | 40–300 g/m² | Confirmed on sample, drawing or order sheet |
| Tensile strength | 1300–2200 MPa | Confirmed on sample, drawing or order sheet |
| Coil weight | 50–500kg | Confirmed on sample, drawing or order sheet |
Get pricing, packing and lead time.
Trial orders welcome
15–35 days from PO
FOB and CIF planning
Packing built around handling
Packing reference

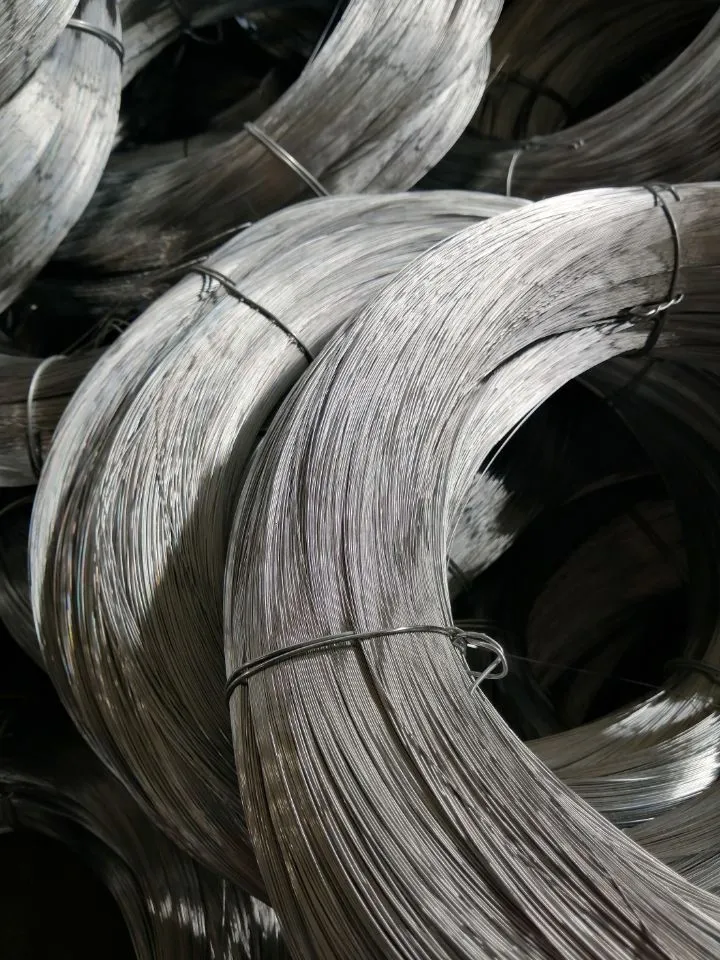

Coils in plastic film and woven/hessian outer wrap, 50–500kg, palletized or floor-loaded to container.
- ✓ Unit and outer pack confirmed
- ✓ Shipping marks checked
- ✓ Loading plan and photos available
Quality documents
Applications
- →High-tensile fence line and trellis wire
- →Cotton and scrap baling wire
- →Vineyard, orchard and greenhouse wire; spring stock
Explore applications →Related buyer guides
High Tensile vs Mild Steel Wire: Strength Grades for Fencing and Baling
Mild wire runs 300-540 MPa; high carbon wire 1300-2200 MPa. How steel grade decides fence, baling and spring use.
7 min read →Wire & CoatingsElectro vs Hot-Dip Galvanized Wire: Zinc Coating Weights Explained
Electro carries 10-40 g/m2 zinc, hot-dip 50-200+ g/m2. What that means for service life, cost and your spec.
7 min read →Buyer FAQ
What is the difference between high carbon and mild steel wire?
Mild steel wire (like our galvanized GI wire) runs 300–540 MPa and bends easily for tying. High carbon wire runs 1300–2200 MPa — several times stronger for the same diameter — so fence lines can be thinner, lighter and strung at higher tension without stretching.
Which grade should I specify?
45#–55# covers baling and general tension work; 65#–70# suits vineyard and high-tensile farm fence; 77B/82B reaches spring-grade strength. Tell us the working load and we will match grade, diameter and coating.
