Actual product referenceField Fence (Hinge Joint)
Graduated-mesh livestock fencing in 50m and 100m rolls

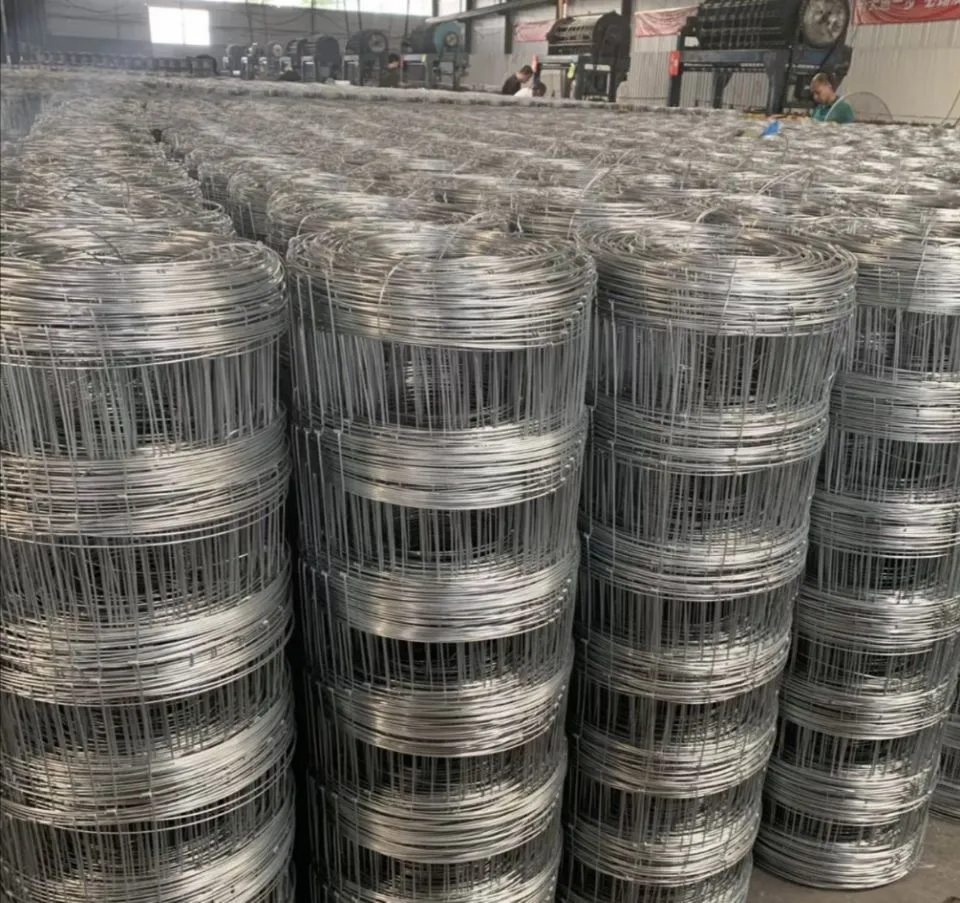

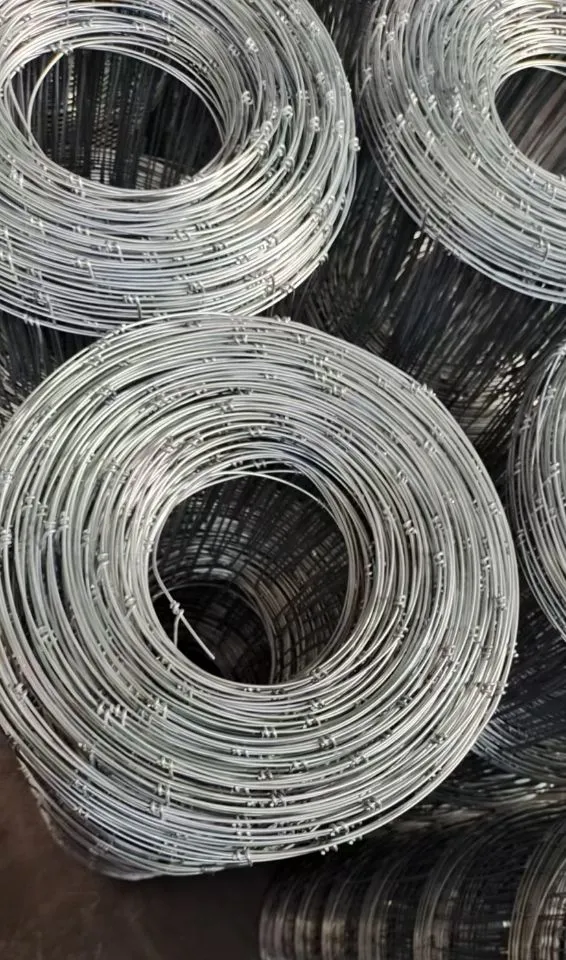

Field fence is hinge-joint woven fencing with graduated horizontal spacing — tight at the bottom for small stock, wider at the top — used for cattle, sheep and land boundary fencing. Leeter manufactures hot-dip galvanized field fence with 2.0–3.5mm top and bottom wires and 1.8–2.5mm inner wires in rolls of 50m and 100m.
Specification locked
Process controlled
Dimension verified
Packing documented
Technical specifications
Final values confirmed on approved order| Specification item | Available range | Order control |
|---|---|---|
| Type | Hinge-joint woven field fence | Confirmed on sample, drawing or order sheet |
| Top/bottom wire | 2.0–3.5mm | Confirmed on sample, drawing or order sheet |
| Inner wire | 1.8–2.5mm | Confirmed on sample, drawing or order sheet |
| Height | 0.8 / 0.9 / 1.0 / 1.1 / 1.2 / 1.5 / 1.6 / 1.8 / 2.0 / 2.4m | Confirmed on sample, drawing or order sheet |
| Vertical stay spacing | 15 / 18 / 20 / 40 / 50 / 60 / 65cm | Confirmed on sample, drawing or order sheet |
| Horizontal spacing | Graduated 15-14-13…11-10-8-6cm bottom-up | Confirmed on sample, drawing or order sheet |
| Roll length | 50m / 100m | Confirmed on sample, drawing or order sheet |
| Finish | Hot-dip galvanized | Confirmed on sample, drawing or order sheet |
Get pricing, packing and lead time.
Trial orders welcome
15–35 days from PO
FOB and CIF planning

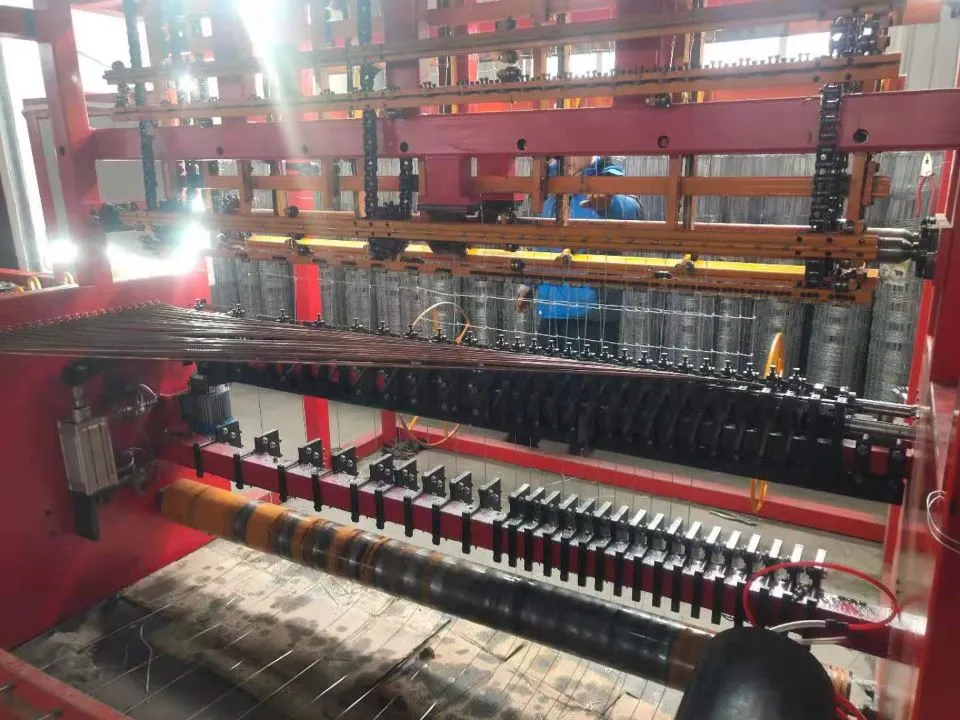

See it made
Filmed on our own production floor — the same line and finish your order runs on. What you see is what ships.
- ✓ Factory-direct, not a trading company
- ✓ Inspection photos and video available per order

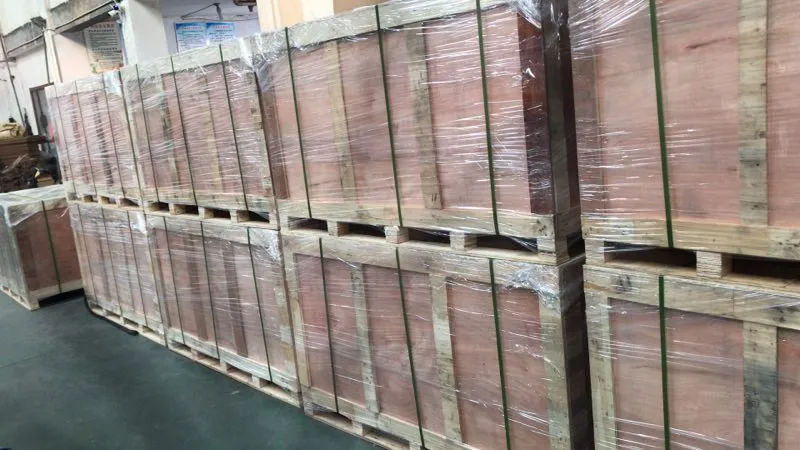

Packing built around handling
Packing reference

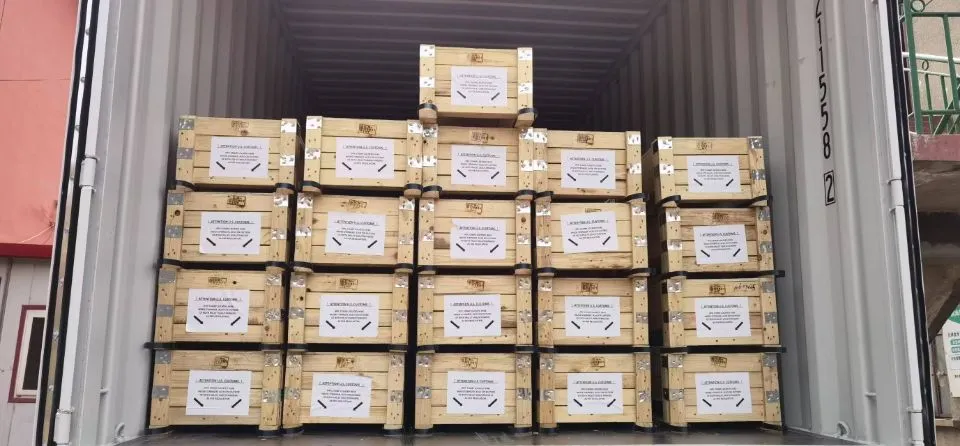

Rolls wrapped and strapped, loaded on pallets or floor-stacked. Container quantities confirmed with a loading plan.
- ✓ Unit and outer pack confirmed
- ✓ Shipping marks checked
- ✓ Loading plan and photos available
Quality documents
Applications

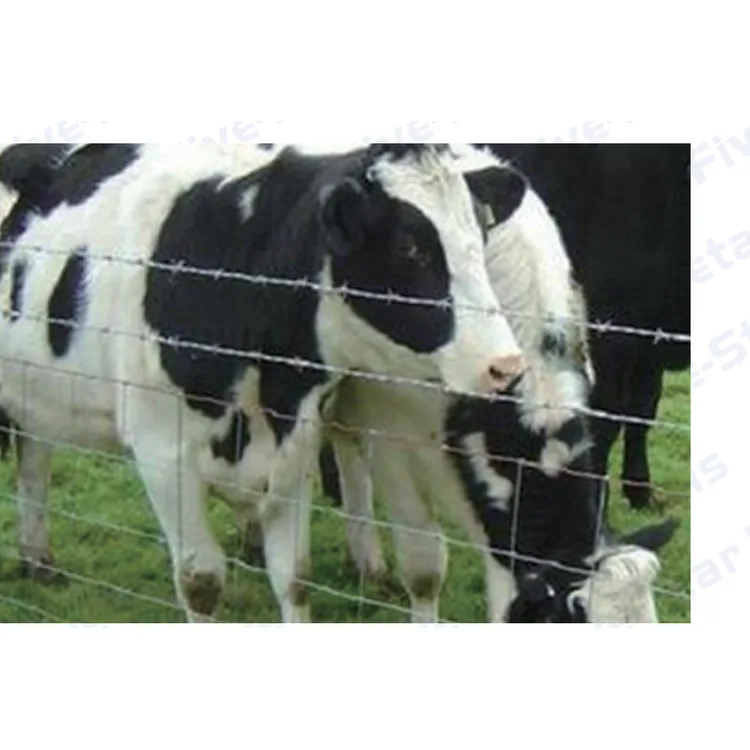

- →Cattle, sheep and goat pasture fencing
- →Land boundary and crop protection
- →Deer and wildlife exclusion at taller heights
Explore applications →Related buyer guides
Field Fence Heights and Spacing for Cattle, Sheep and Deer
Which field fence height and wire spacing to order for cattle, sheep, goats and deer, plus T-post pairing.
7 min read →Form Stakes & FencingClass 1 vs Class 3 Galvanized Field Fence: How Zinc Coating Sets Service Life
Class 1 vs Class 3 galvanized field fence: coating weights under ASTM A116, real service-life ranges, and how to choose by climate and design life.
7 min read →Form Stakes & FencingHorse Fencing: No-Climb Woven Mesh, V-Mesh and Welded Horse Panels
2x4 no-climb woven mesh is the safe horse fence; barbed wire never is. When to use woven mesh, V-mesh or welded panels, with the specs that matter.
5 min read →Form Stakes & FencingField Fence Knot Types: Hinge Joint vs Fixed Knot vs Square Deal
Hinge joint flexes, square deal resists sag on hills, fixed knot is strongest for deer and game — how to pick the right field fence knot.
6 min read →Buyer FAQ
What height field fence do I need for cattle or sheep?
Cattle are typically fenced with 1.0–1.2m field fence; sheep and goats with 0.9–1.1m and tighter bottom spacing; deer exclusion needs 1.8–2.4m. The graduated mesh means one roll handles mixed stock — small openings low, wide openings high.
What is a hinge joint and why does it matter?
The hinge joint wraps each vertical stay around the line wires, forming a pivot that flexes when animals push the fence and returns to shape instead of kinking. It is the standard economical knot for livestock fencing worldwide.
Need a matched answer?
Send the drawing, destination and expected quantity to the same team that prepares your quotation.
Talk to our buyer desk
Ready to source Field Fence (Hinge Joint)?
Turn your requirement into a quote.
Pricing, packing and lead time tied to the confirmed specification.
