Actual product referencePVC Coated Wire
Color-coated wire over black annealed or galvanized core

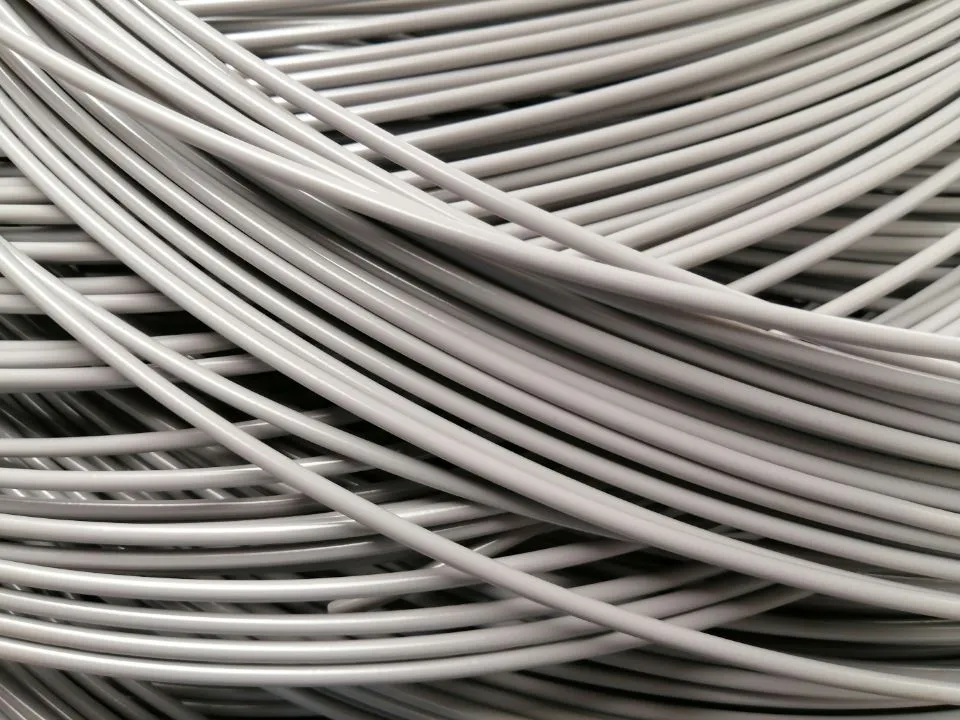

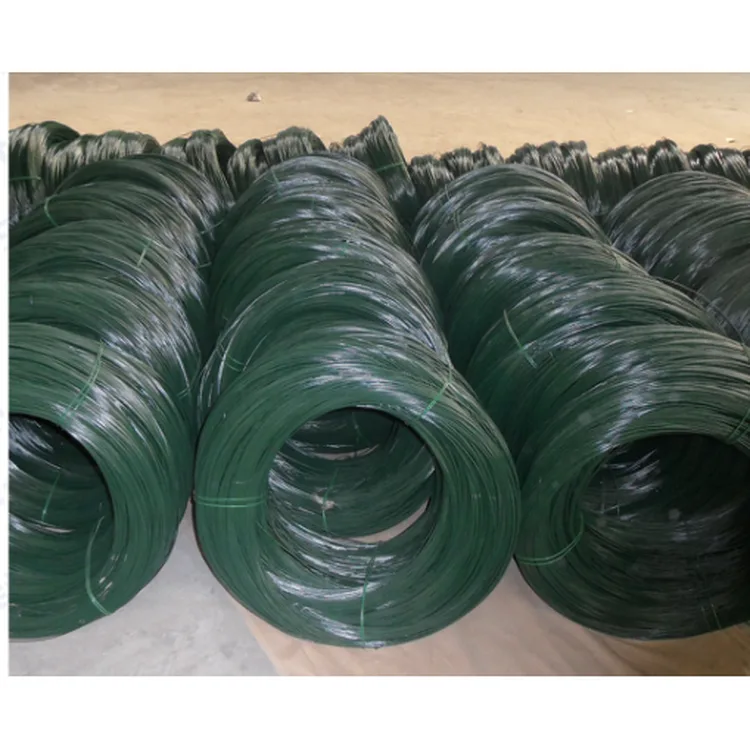

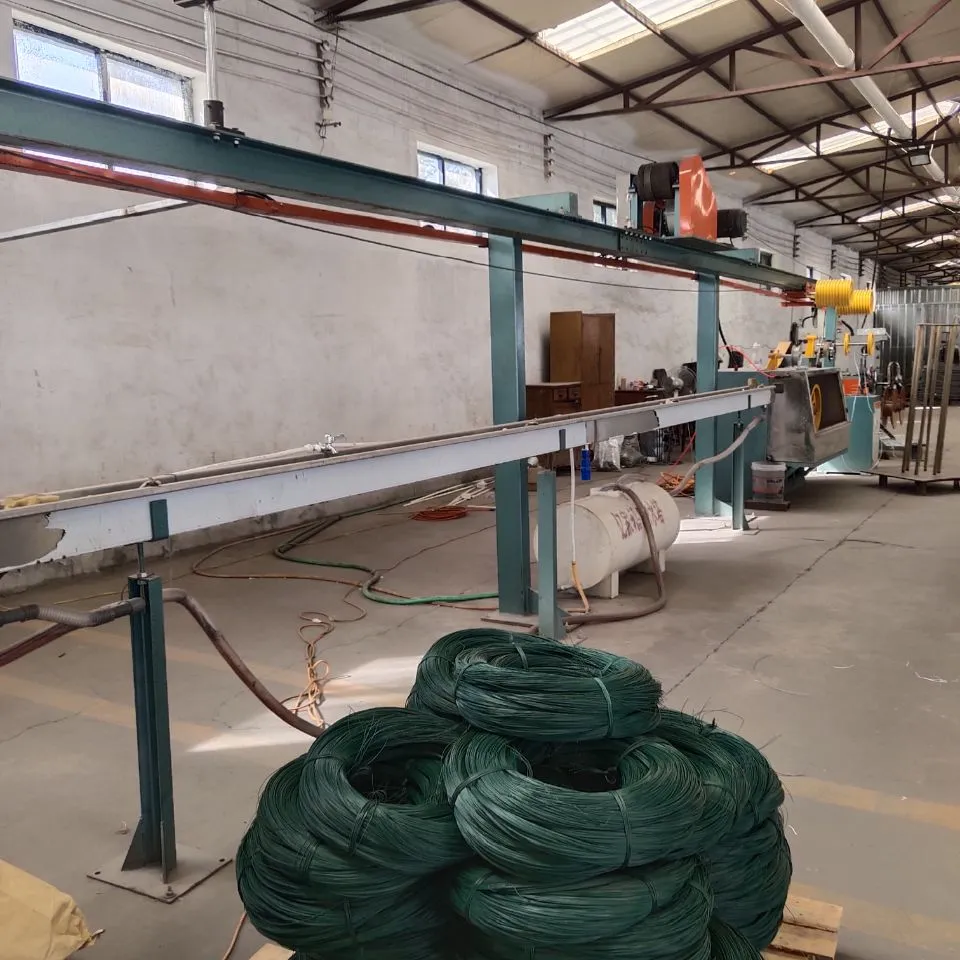

PVC coated wire is steel wire jacketed in plastic for corrosion resistance and a clean colored finish. Leeter extrudes PVC over black annealed, electro-galvanized or hot-dip galvanized core wire in six standard core/outer combinations from 0.80/1.20mm to 3.00/4.00mm, plus retail small coils.
Specification locked
Process controlled
Dimension verified
Packing documented
Technical specifications
Final values confirmed on approved order| Specification item | Available range | Order control |
|---|---|---|
| Core wire | Black annealed, electro-galvanized or hot-dip galvanized | Confirmed on sample, drawing or order sheet |
| Core / outer diameter | 0.80/1.20, 1.00/1.40, 1.40/2.00, 2.00/3.00, 2.50/3.50, 3.00/4.00mm | Confirmed on sample, drawing or order sheet |
| Tensile strength | 30–55 kgf/mm² | Confirmed on sample, drawing or order sheet |
| Coil weight | 1–500kg | Confirmed on sample, drawing or order sheet |
| Small coils | 0.8mm×75m, 1.2/1.4/1.6mm×50m — 20 pcs/carton | Confirmed on sample, drawing or order sheet |

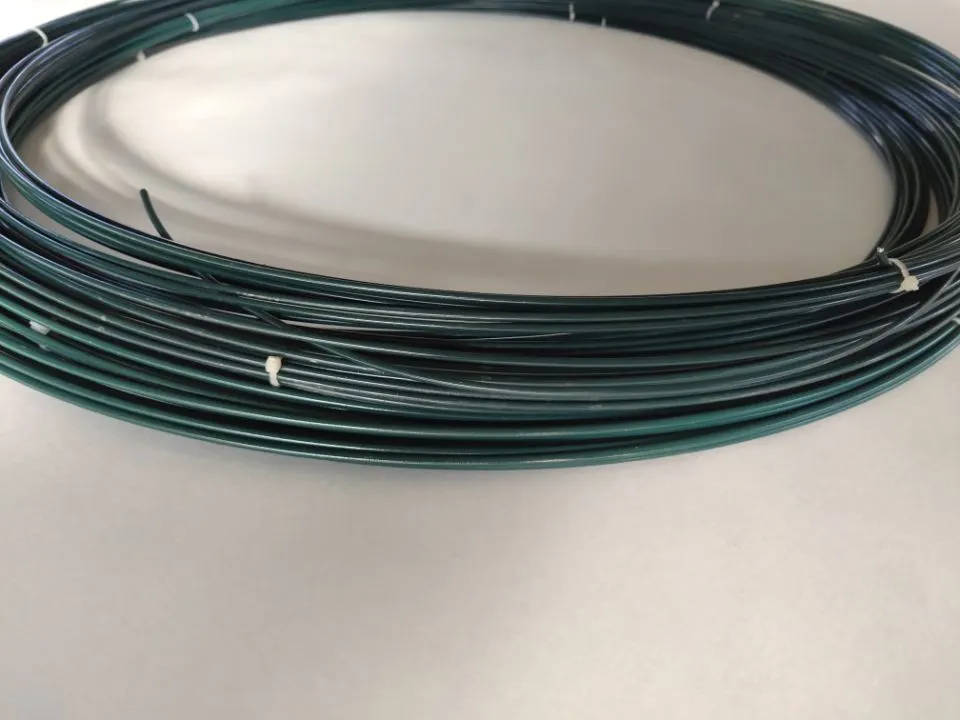

| Color | Dark green standard; other colors on request | Confirmed on sample, drawing or order sheet |
Get pricing, packing and lead time.
Trial orders welcome
15–35 days from PO
FOB and CIF planning
Packing built around handling
Packing reference
Coils in plastic film with woven-cloth outer; small coils shrink-wrapped, 20 per carton. Palletized for container loading.
- ✓ Unit and outer pack confirmed
- ✓ Shipping marks checked
- ✓ Loading plan and photos available
Quality documents
Applications
- →Animal enclosures, forestry and aquaculture tying
- →Garden, park and zoo fencing repairs
- →General anti-corrosion binding wire
Explore applications →Related buyer guides
Chicken Wire Sizes: Mesh Openings, Gauge and Which to Buy
Hex netting openings run 1/2 in (13mm) to 2 in (50mm). How opening, gauge and finish decide the right chicken wire.
7 min read →Wire & CoatingsElectro vs Hot-Dip Galvanized Wire: Zinc Coating Weights Explained
Electro carries 10-40 g/m2 zinc, hot-dip 50-200+ g/m2. What that means for service life, cost and your spec.
7 min read →Wire & CoatingsHigh Tensile vs Mild Steel Wire: Strength Grades for Fencing and Baling
Mild wire runs 300-540 MPa; high carbon wire 1300-2200 MPa. How steel grade decides fence, baling and spring use.
7 min read →Wire MeshSquare Woven Wire Mesh: Mesh Counts and Wire Diameters Explained
Mesh count is wires per inch: 2x2 to 60x60. How count and wire diameter set the opening, and which mesh to specify.
7 min read →Buyer FAQ
What core wire should I choose under the PVC?
Black annealed core is the economical choice where the jacket stays intact. A galvanized core adds a second corrosion barrier so cut ends and jacket nicks do not become rust points — worth it for permanent outdoor runs.
Can you match a specific PVC color?
Dark green is our stocked standard. Other colors are produced to order against a RAL reference with a modest minimum per size.
Need a matched answer?
Send the drawing, destination and expected quantity to the same team that prepares your quotation.
Talk to our buyer desk
Ready to source PVC Coated Wire?
Turn your requirement into a quote.
Pricing, packing and lead time tied to the confirmed specification.
